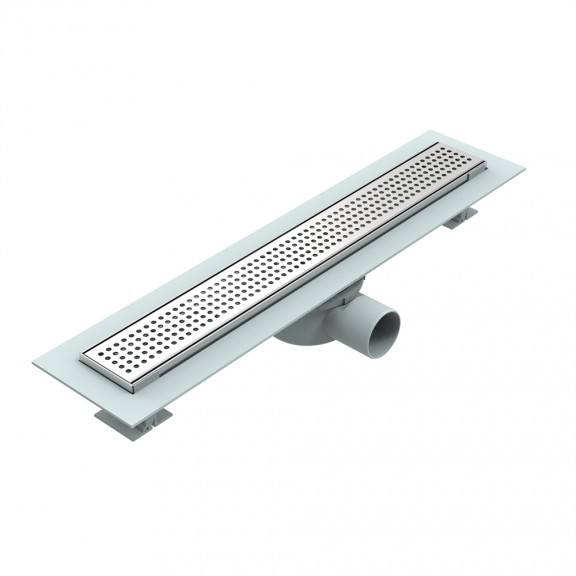

Siphon ICD 50004 - 70

Available Options

Siphon - EASY DRAIN

IC - LINE

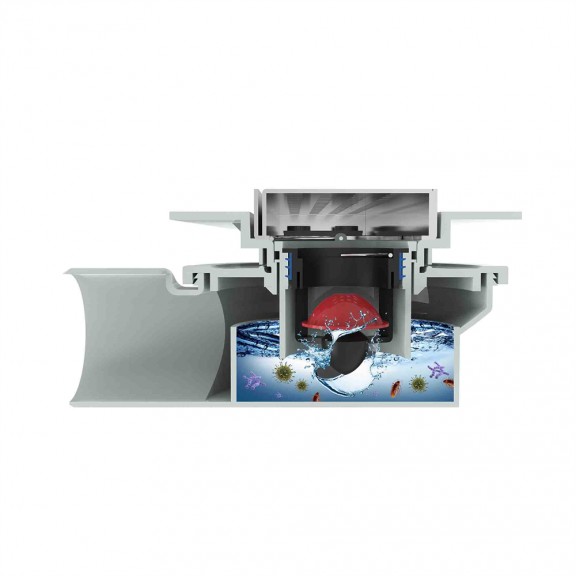

Magnet Dry & Wet siphon system is an improved siphon system with advantages of Permanent anti-odor, Prevent insects from entering, it’s designed with a Magnet cover thinking to improve water input, and with a self close and open door to get more practical functions.

The wet siphon designed with ideas of easy cleaning inside, high flow rate, the rotatable design is more easy installation.

Specs

COVERAGE Gloss
TYPE OF PACKAGE Blister
SHORT DESCRIPTION Magnet Dry & Wet Siphon
DETAILED DESCRIPTION Plastic linear drain

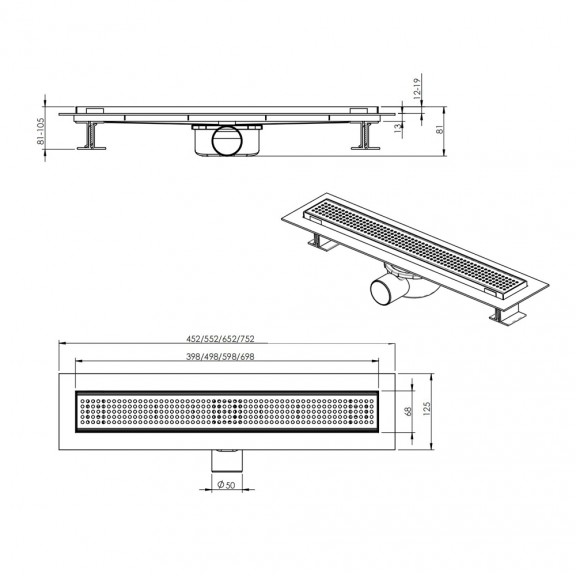

Size (сm) W*H*L 6.8x8.1x70
Basic Material ABS
COLOR Gray for Base/ Polished for Grid
Width (cm) 12.5
Height (cm) 8.1
Depth (cm)
length (cm) 75.2
THICKNESS (cm) 3.0mm for Base/1.5mm for Grid
Diameter (cm) 5
Dry valve Yes
Wet valve Yes
Grid / Cap material SS304
Outlet DN50
Flange width /cm/ 2.8
Flow capability /L/min 52L/Min
NAME FLOOR SIPHON
KIT/PART
GROSS WEIGHT/KG/ 2.4
NET WEIGHT/KG/ 2.2
QUANTITY IN MASTER BOX 9
NUMBER VOLUME - m3 0.0107694
NUMBER OF PACKAGES 1
PACKAGE SIZE L*W*H-CM P1 77.2*15.5*9
PACKAGE SIZE L*W*H-CM P2
PACKAGE SIZE L*W*H-CM P3
PACKAGE SIZE L*W*H-CM P4
